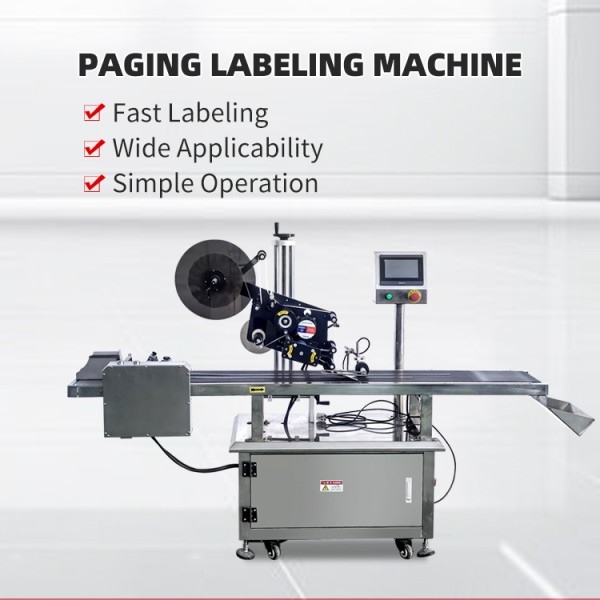

The Automatic Paging Labeling Machine transforms stacked flat products into a controlled, single-file production flow. Its feeding system separates each item individually, transfers it steadily through the labeling station, and applies a self-adhesive label to the required surface with speed and consistency.
Designed for pouches, plastic bags, paper bags, cards, hang tags, envelopes, flat cartons, sleeves, inserts, and other sheet-like products, the machine replaces repetitive manual separation and labeling with one coordinated process. Paging speed, conveyor movement, label dispensing, and product detection work together to maintain orderly feeding and accurate label placement.
The system can operate as an independent labeling unit or integrate with coding, printing, counting, inspection, rejection, and automatic collection equipment. Different feeding structures may be selected according to product thickness, flexibility, surface friction, and material characteristics.
-
Automatic Product Separation
The paging mechanism separates stacked products one at a time, creating the consistent spacing required for reliable labeling.
-
Precise Label Placement
Product sensors and label-control systems coordinate dispensing with conveyor movement to maintain repeatable application positions.
-
Stable Flat-Product Feeding
Adjustable belts, guides, and feeding pressure help control lightweight bags, cards, cartons, and other thin products during transport.
-
Wide Product Compatibility
The machine can process compatible pouches, paper bags, plastic bags, cards, envelopes, hang tags, inserts, sleeves, and unfolded cartons.
-
Smooth Label Application
A pressing roller, brush, or belt smooths the label against the product surface, helping reduce bubbles, wrinkles, and raised edges.
-
Independent Speed Adjustment
Paging, conveying, and labeling speeds can be coordinated according to the product dimensions, material, label size, and output target.
-
Intelligent Product Detection
Labels are dispensed only when a product is detected, reducing unnecessary label consumption and improving process control.
-
Fast Format Changeover
Accessible adjustments for feeding width, product guides, sensors, label position, and pressing components simplify product changes.
-
Optional Printing and Inspection
The machine can be equipped with coding, barcode printing, visual inspection, label detection, rejection, counting, and collection functions.
-
Flexible Feeding Configurations
Friction feeding is suitable for many flat products, while vacuum-assisted feeding can be selected for materials that cannot be separated reliably by friction alone.
-
1. What is a paging labeling machine?
It is an automatic system that separates stacked flat products individually and applies a self-adhesive label as each item passes through the labeling station.
-
2. What products can the machine label?
It can label compatible bags, pouches, cards, hang tags, envelopes, sleeves, inserts, paper sheets, and unfolded cartons.
-
3. What is the difference between a paging labeler and a top labeler?
A paging labeler automatically separates stacked products before labeling. A standard top labeler normally receives products that have already been individually spaced on a conveyor.
-
4. How does the paging mechanism work?
The feeder uses controlled friction, vacuum assistance, or another separation method to release products individually from a stack and place them onto the conveyor.
-
5. Can it handle thin plastic bags?
Yes. Suitable thin bags can be processed by adjusting the feeding pressure, belt friction, guide position, vacuum assistance, and operating speed. Actual samples should be tested before the final configuration is confirmed.
-
6. Can it label filled pouches?
It is mainly designed for empty or relatively flat products. Filled pouches may be processed when their thickness, shape, and surface remain sufficiently stable.
-
7. Can it apply labels to both sides?
A standard machine normally labels one surface. Double-sided application requires an additional applicator, a product-turning mechanism, or a second labeling process.
-
8. Can a printer be integrated?
Yes. A compatible printing unit can add dates, batch codes, barcodes, QR codes, serial numbers, or other variable information before label application.
-
9. What factors affect labeling accuracy?
Product separation, feeding consistency, conveyor stability, label quality, sensor position, web tension, surface flatness, and correct machine adjustment all influence the final result.
-
10. Can the machine be customized?
Yes. The feeding method, product range, label dimensions, labeling position, conveyor width, printing system, inspection functions, reject device, and collection method can be customized.
