Automatic Round Bottle Orientation Labeling Machine with 40-70 cans/min Output, ±1mm Labeling Accuracy, and 220V 50Hz Power Supply

The Automatic Round Bottle Orientation Labeling Machine is engineered for applications in which a label must appear at a precise angular position rather than at a random point around the container.

Before label application, each bottle is individually controlled and rotated while an orientation system searches for a defined reference feature. Once the handle, nozzle, seam, recess, embossment, color mark, or other detectable feature reaches the programmed position, the machine applies the label in accurate alignment with that reference.

This controlled sequence gives every package a consistent visual direction. Front labels can face away from handles, information panels can align with dispensing components, and decorative graphics can remain correctly positioned from bottle to bottle.

The machine supports partial-wrap, full-wrap, and selected multi-label applications on compatible cylindrical containers. It can operate independently or integrate with bottle feeding, filling, capping, coding, inspection, and downstream packaging equipment.

The machine identifies a predefined bottle feature and rotates the container to the required angular position before labeling.

Labels are consistently applied relative to the bottle handle, nozzle, seam, molded feature, color mark, or designated display panel.

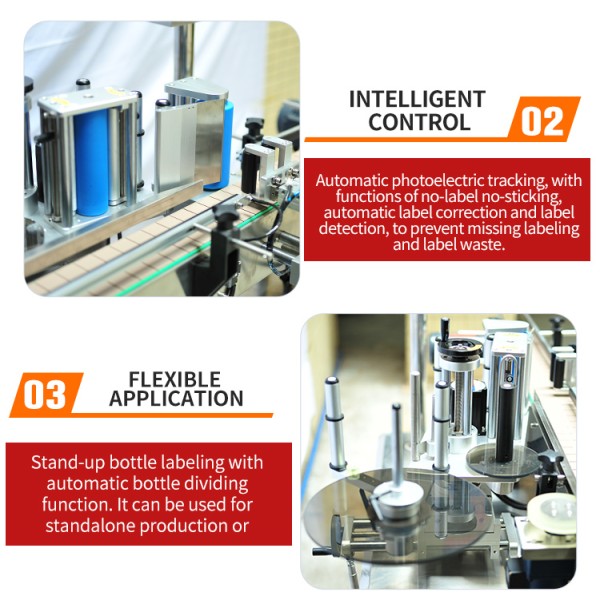

Photoelectric, contrast, mechanical, or vision-based detection can be selected according to the container structure and positioning reference.

A positioning roller, three-point mechanism, star wheel, or dedicated orientation station provides stable rotational control before label dispensing.

Bottle positioning, label release, conveyor movement, and wrap application are synchronized to maintain repeatable placement.

The machine can apply a front label, partial-wrap label, full-wrap label, or selected label combinations according to the package design.

Adjustable guides, bottle separators, top-hold devices, and positioning components help reduce slipping, tilting, and uncontrolled rotation.

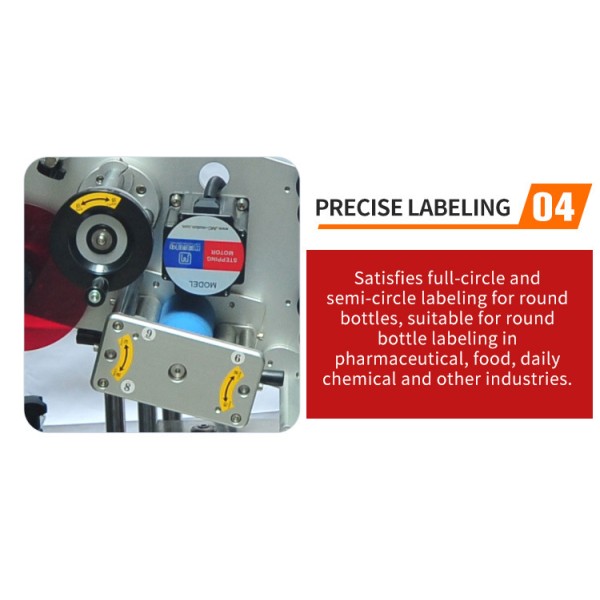

A wrap belt, roller, or pressing mechanism smooths the label firmly against the container and helps reduce wrinkles, bubbles, and lifted edges.

Accessible adjustments and stored operating parameters simplify transitions between compatible bottle, label, and positioning formats.

The machine can connect with upstream and downstream equipment while exchanging operating, alarm, and product-flow signals.

1. What is an orientation labeling machine?

   It is a labeling system that detects a reference feature on a container, rotates the container into a programmed position, and applies the label at a fixed angle.

2. How is it different from a standard round bottle labeler?

   A standard round bottle labeler may apply the label at any point around the circumference. An orientation labeler first establishes the bottle’s angular position and then applies the label relative to a specific feature.

3. What bottle features can be used for positioning?

   Positioning may be based on a handle, nozzle, seam, groove, notch, embossment, molded point, printed mark, color mark, or another consistently detectable feature.

4. What containers can the machine label?

   It is mainly designed for compatible cylindrical bottles, jars, cans, and containers that have a stable positioning reference.

5. Can it label bottles with handles?

   Yes. The bottle can be oriented by its handle so that the front label, rear label, or wrap-label starting point maintains a fixed relationship with the handle.

6. Can it position bottles by a color mark?

   Yes. A suitable contrast or color-mark sensor can detect a printed reference mark when its color difference, size, and surface condition provide reliable recognition.

7. Can it apply more than one label?

   Yes. Depending on the configuration, the machine can apply one label, front-and-back labels, or multiple labels at defined angular positions.

8. Can it perform full-wrap labeling?

   Yes. Full-wrap labeling can be performed after the bottle has been correctly oriented, allowing the label’s starting and finishing position to align with the package design.

9. What factors affect positioning accuracy?

   Bottle consistency, reference-feature visibility, sensor selection, rotational stability, label quality, conveyor control, and mechanical adjustment all influence the final result.

10. Can the machine be customized?

    Yes. The positioning method, sensor type, label quantity, applicator arrangement, bottle-handling
